Archimedes Liam-F1 Model R-600 (500W)

Reliance Green Energy Pte Ltd presents the Archimedes Liam-F1 Model R-600, a compact 500W micro-wind generator engineered specifically for light urban drafts in Singapore.

Featuring a 0.6m rotor diameter and lightweight 45kg total assembly weight, the R-600 easily mounts onto HDB service yards, private apartment balconies, and landed residential roof frames without requiring heavy structural reinforcement.

With a starting wind speed of less than 1.0 m/s and a noise rating under 45dB, it runs continuously and silently—harvesting ambient sea breezes and household air conditioner condenser fan exhaust to supplement your daily clean power needs.

Key Model Highlights:

Rated Power Output: 500W (550W Peak Threshold)

Compact 0.6m Rotor Diameter with 0.8m Body Length

Configurable 12V / 24V DC Working Output

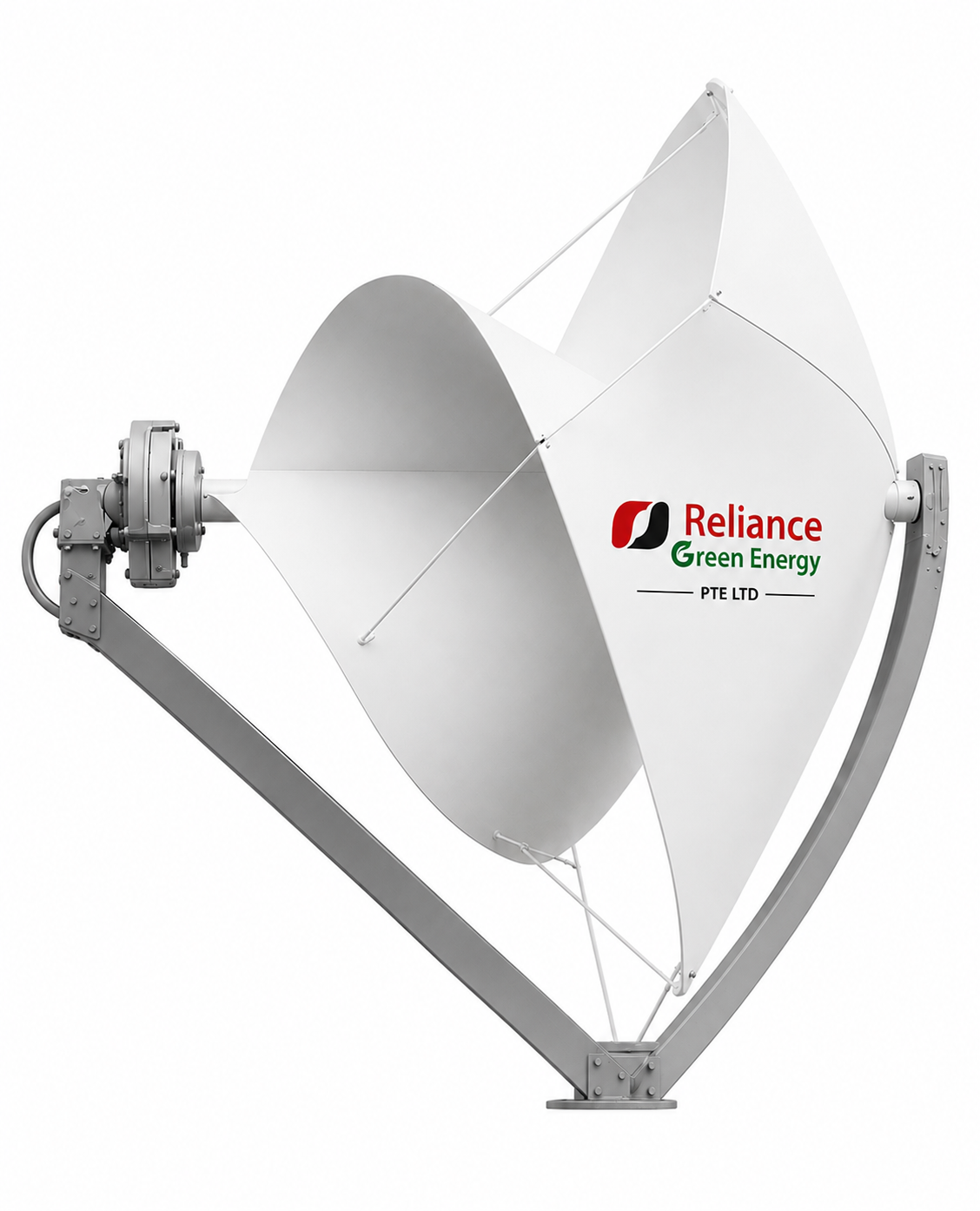

Archimedes Liam-F1 Model R-600 Wind Turbine 500W

Technical Parameter	Model: R-600 Specification
Product Classification	Vertical Axis Micro Wind Turbine
Rated Power Output	500W
Peak Capacity Limit	550W
Starting Wind Velocity	< 1.0 m/s
Cut-in Wind Velocity	< 3.0 m/s
Rated Wind Speed	13.0 m/s
Max Operational Draft Speed	≤ 36 m/s (Instantaneous Gusts ≤ 45 m/s)
DC Output Voltage Options	12V / 24V DC
Rotor Wheel Diameter	0.6 meters
Assembly Overall Length	0.8 meters
Net Weight	45 kg
Blade Count & Type	3 Aerodynamic Nautilus Spiral Blades
Stator Protection Class	IP54 Weatherproof Rating
Working Temperature Range	-25°C to +45°C
Max Environmental Humidity	Turbine Body ≤ 90% RH
Safety Control Standard	Automated Electromagnetic Braking System

Archimedes Liam-F1 Dimensional CAD Drawing and Blueprint

Dimensional CAD Schematics

Precise multi-angle orthographic projections highlighting overall length (790.34 mm), rotor wheel diameter (Ø579.29 mm), and base mounting footprint width (110 mm).

CAD Orthographic Views

FEA Structural Deformation and CFD Wind Stress Analysis

FEA Stress & Flow Analysis

Finite Element Analysis (FEA) model mapping structural pressure distribution, blade deflection thresholds, and dynamic load relief performance across high-velocity wind drafts.

ANSYS Simulation

3D Spiral Blade Geometry

Exploded mathematical geometry showcasing the 3-blade nautilus logarithmic spiral design, central drive shaft alignment, and expanded air-capture surface area.

Patent Geometry

Overall Length:

790.34 mm

Rotor Diameter:

Ø 579.29 mm

Assembly Height:

705.71 mm

Base Width:

110.00 mm

HDB & Condo Balconies

Residential Micro-Power

Compact Dimensions: 0.6m diameter fits easily on balcony railings and service yards without obstructing living space.
Silent Performance: Acoustic emission stays under 45dB, satisfying residential noise requirements.

Balcony Friendly

A/C Condenser Ducts

Forced Draft Recovery

Continuous Wind Capture: Placed in front of home compressor fans to turn exhaust air directly into electricity.
Bill Offset: Recovers kinetic energy to help lower household monthly utility bills.

Energy Recovery

Landed Homes & Gardens

Off-Grid Battery Storage

Garden & Outdoor Lighting: Charges 12V/24V battery systems to power nighttime pathway lights and water features.
Solar-Wind Hybrid: Works seamlessly alongside rooftop solar panel setups for round-the-clock power.

Hybrid Compatible

Get Expert Advice

Talk to Our Team About the Archimedes Liam F1 Wind Turbine Series

Our team will help you inspect your space and design the best solar and wind energy system for your home or business.

Key Advantages

Starts spinning easily even in light city breezes.
Fits securely on both flat concrete rooftops and metal frames.
Built-in automatic safety brakes protect the unit during strong storms.

Request More Information

Contact our Singapore team today for site evaluations and pricing details.

Phone

+65 9388 2202

Email

karlkoh1818@gmail.com

Office & Showroom

7030 Ang Mo Kio Ave 5, #08-16 Northstar @AMK, Singapore 569880

The Archimedes Liam-F1 Model R-600 is a compact 500W micro vertical-axis wind turbine engineered specifically for residential environments, HDB service yards, apartment balconies, and landed property roofs in Singapore. Its nautilus-spiral 3-blade rotor design captures multi-directional breezes with near-silent operation.

Rated Capacity: 500W (550W Peak Threshold)
Rotor Diameter: 0.6 meters (Ø 579.29 mm)
Assembly Length & Weight: 0.8 meters (790.34 mm) and lightweight at 45 kg
Working Output Voltage: Configurable 12V / 24V DC

Thanks to its compact 0.6m rotor diameter and lightweight 45kg structure, the Model R-600 installs easily on high-rise balcony railings, HDB service yards, private condo terraces, landed house roof frames, and garden solar-wind hybrid posts without requiring structural reinforcement.

When mounted directly in front of or aligned with household A/C condenser discharge vents, the R-600 captures the high-velocity forced draft pushed out by the compressor fan. It converts this wasted kinetic wind energy into clean DC electricity to help offset household cooling power costs.

The Model R-600 features an ultra-low startup wind threshold of under 1.0 m/s and a cut-in velocity under 3.0 m/s. This extremely low startup torque ensures the blades spin and begin producing micro-power even in light urban breezes and mild coastal air currents.

No. The nautilus logarithmic spiral blade design minimizes acoustic turbulence and rotational vibration, maintaining sound levels under 45 dB. This ensures near-silent operation that complies with residential noise requirements and high-density living standards in Singapore.

Yes! The R-600 supports 12V and 24V DC battery systems and works seamlessly alongside existing rooftop solar panel installations. It acts as a round-the-clock energy source, supplying clean power during overcast conditions and nighttime when solar panels are inactive.

The turbine features automated electromagnetic braking logic that dynamically limits rotor speed if wind velocity exceeds operational thresholds. It is engineered to operate safely in continuous winds up to 36 m/s and withstand peak instantaneous gusts up to 45 m/s.

Built with IP54 weatherproof stator protection and a gearless direct-drive permanent magnet generator, the Model R-600 has minimal moving parts. Maintenance is virtually hassle-free, requiring only occasional visual inspection of structural mounting bolts and wiring terminals.

Contact Reliance Green Energy Pte Ltd by phone at +65 9388 2202, email karlkoh1818@gmail.com, or visit our Singapore office and showroom at 7030 Ang Mo Kio Ave 5, #08-16 Northstar @AMK, Singapore 569880 for site feasibility checks and pricing.
