Liam-F1 Model R-1600 Wind Turbine

★ Live Commercial Deployment View ★

See the Liam-F1 R-1600 in Action at INFINEON Singapore Industrial Cooling Towers

Harvesting continuous upward thermal drafts and exhaust airflow to generate 24/7 clean energy on-site.

Live Action View
Industrial & Commercial Flagship Power Generator

Archimedes Liam-F1 Model R-1600 (5000W / 5kW)

Reliance Green Energy Pte Ltd supplies the flagship Archimedes Liam-F1 Model R-1600, a heavy-duty 5000W (5kW) vertical axis wind turbine specifically engineered for industrial cooling towers, factory HVAC exhaust ducts, commercial shopping malls, and high-rise building rooftops across Singapore.

Built with a large 1.6m rotor wheel diameter and an 1.8m overall assembly frame, the 5kW R-1600 is constructed to withstand continuous high-velocity forced draft airflows and strong urban rooftop updrafts—recovering wasted kinetic energy from major mechanical facilities.

With a starting wind speed under 1.0 m/s and industrial-grade IP54 stator protection, the R-1600 works 24/7 to power commercial base loads, common area lighting, and industrial battery banks while assisting building owners in acquiring BCA Green Mark sustainability credits.

Key Model Highlights:
Rated Power Output: 5000W / 5kW (5050W Peak Limit)
Heavy-Duty 1.6m Rotor Diameter & 1.8m Body Frame
Multi-Voltage System: 12V / 24V / 48V / 96V DC Output
Archimedes Liam-F1 Model R-1600 Wind Turbine 5000W 5kW
Engineering Datasheet

R-1600 Technical Parameters

Technical Parameter Model: R-1600 Specification
Product Name Vertical wind turbine
Starting Wind Speed (m/s) <1.0 m/s
Cut-in Wind Speed (m/s) <3.0 m/s
Rated Wind Speed (m/s) 13 m/s
Safe Wind Speed (m/s) Maximum wind speed: ≤36m/s
Maximum instantaneous wind speed ≤45m/s
Rated Voltage (DC) 12 / 24 / 48 / 96V
Rated Power (W) 5000W (5kW)
Maximum Power (W) 5050W
Wheel Diameter (m) 1.6m
Wind Turbine Length (m) 1.8m
Package Size (mm) 1550 * 1610 * 1860mm
Gross Weight 190kg
Blades 3
Generator Protection Class IP54
Operating Temperature Wind turbine is -25~+45°C
Use of Environmental Humidity Wind turbine is ≤90%
Controller and inverter is ≤80%
Altitude ≤4500m
Technical Schematic & Structural Analysis

Exterior Dimensions & Mechanical Design

Comprehensive dimensional blueprints, computational fluid dynamics (CFD) stress simulations, and 3D architectural schematics of the Archimedes Liam-F1 wind turbine assembly.

Archimedes Liam-F1 Dimensional CAD Drawing and Blueprint

Dimensional CAD Schematics

Precise multi-angle orthographic projections highlighting industrial assembly length (1800.00 mm), rotor wheel diameter (Ø1600.00 mm), and structural mounting base width.

CAD Orthographic Views

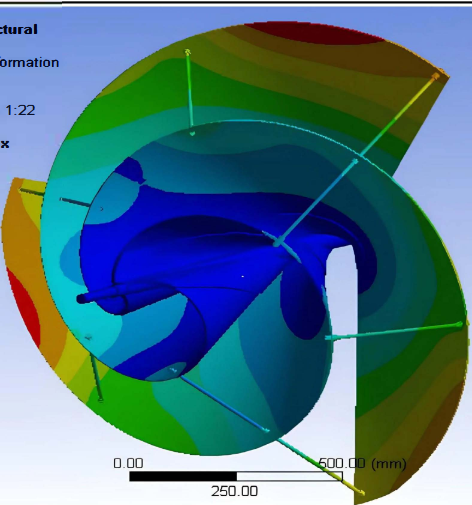

FEA Structural Deformation and CFD Wind Stress Analysis

FEA Stress & Flow Analysis

Finite Element Analysis (FEA) model mapping structural pressure distribution, blade deflection thresholds, and dynamic load relief performance across high-velocity wind drafts.

ANSYS Simulation

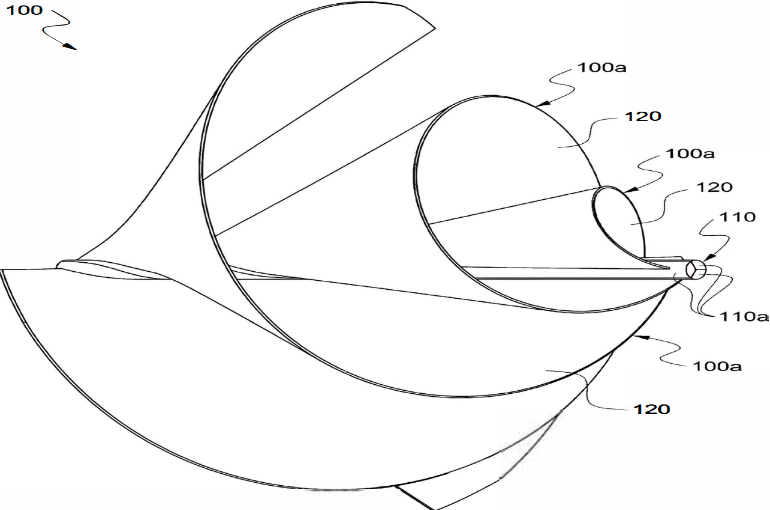

Archimedes Liam-F1 3D Spiral Blade Geometry Diagram

3D Spiral Blade Geometry

Exploded mathematical geometry showcasing the 3-blade nautilus logarithmic spiral design, central drive shaft alignment, and expanded air-capture surface area.

Patent Geometry
Overall Length:
1800.00 mm (1.8m)
Rotor Diameter:
Ø 1600.00 mm (1.6m)
Gross Weight:
190 kg
Rated Output:
5000W (5kW)
★ Our Completed Projects ★

Turning Industrial Waste Airflow Into Pure Profit: Singapore’s First Commercial Wind Installations

Why let your facility's massive exhaust and cooling energy blow away into the atmosphere? Reliance Green Energy PTE LTD has successfully proven that major commercial and semiconductor plants across Singapore can harvest continuous mechanical ventilation and thermal drafts to generate 24/7 clean electricity. See how our pioneering installations are redefining industrial energy efficiency.

Live Action View

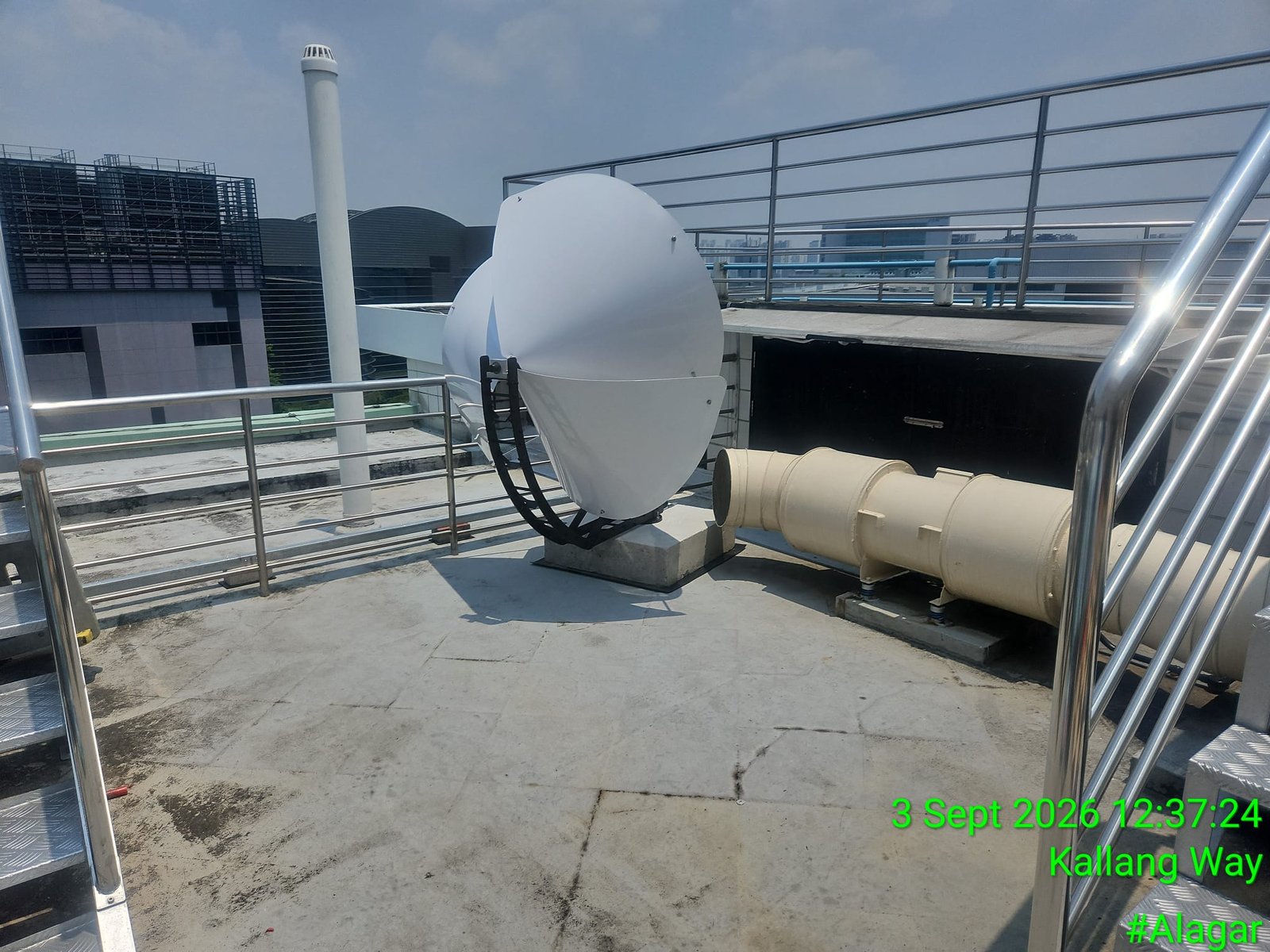

Warehouse Exhaust Wind Turbine Installation at Infineon Singapore Successfully Commissioned
Warehouse Exhaust Recovery

Singapore’s First Commercial Liam-F1 Model R-1600 (5kW) Wind Turbine Installation at Infineon Singapore

This completed landmark deployment harnesses high-velocity air expelled by industrial warehouse mechanical exhaust systems. Rather than letting conditioned ventilation air dissipate wastefully into the environment, the Liam-F1 Model R-1600 (5kW) vertical-axis turbine captures this continuous kinetic airflow stream to generate clean, dependable electricity directly on-site, lowering net grid reliance and enhancing corporate carbon offset goals.

Engineered explicitly for turbulent urban and industrial microclimates, the system converts erratic directional vectors into stable electrical output, providing a resilient baseline power source designed for continuous round-the-clock operations.

  • ☞ Technology: Archimedes Liam-F1 Model R-1600 Vertical-Axis Wind Turbine (5kW rated output, high aerodynamic efficiency).
  • ☞ Airflow Source: High-volume warehouse mechanical ventilation exhaust streams and continuous drift ducts.
  • ☞ Core Benefit: Recycles waste mechanical exhaust into constant baseline facility power while cutting operational overhead.
  • ☞ Grid Integration: Seamless synchronization with existing on-site low-voltage distribution frameworks and smart monitoring meters.
Industrial Cooling Tower Recovery

Singapore’s First Commercial Liam-F1 Model R-1600 (5kW) Wind Turbine Installation at Infineon Singapore Cooling Towers

Live Action View

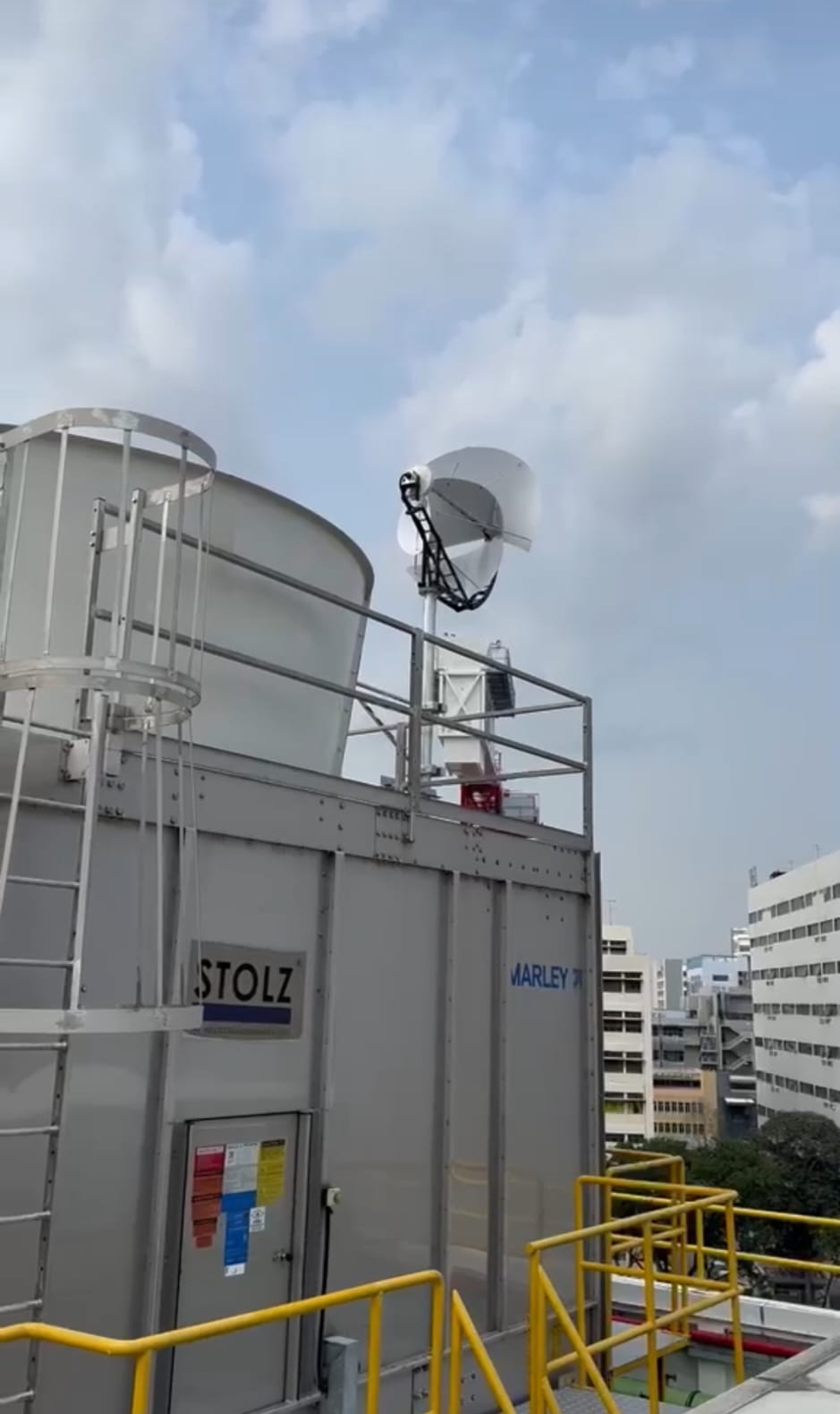

Wind Turbine for Cooling Towers at Infineon Singapore Successfully Completed

A specialized engineering deployment configured specifically for massive industrial cooling towers. Built with reinforced structural steel frameworks, heavy concrete foundation block footings, and rigorous Professional Engineer compliance, this installation successfully harnesses intense vertical thermal drafts and high-velocity discharge updrafts produced by large-scale HVAC water chillers.

By capturing thermal energy that would otherwise disperse harmlessly into the upper atmosphere, this project sets a new benchmark for semiconductor manufacturing plants seeking innovative asset-level decarbonization strategies.

  • ☞ System Model: Model R-1600 Vertical Wind Turbine (5000W robust power capacity optimized for thermal currents).
  • ☞ Application: Industrial cooling tower wind draught and thermal updraft capture under harsh operational conditions.
  • ☞ Safety & Compliance: Complete structural calculation, PE endorsement, wind-load simulation, and SCDF regulatory alignment.
  • ☞ Durability: Corrosion-resistant marine-grade finishes and components designed to endure continuous moisture exposure and tropical weather.

Ready to Recover Energy From Your Facility's Exhaust Airflow?

Schedule a professional on-site assessment with Reliance Green Energy Pte Ltd today.

Target Applications for Model R-1600

Where the 5kW Liam-F1 R-1600 Excels in Singapore

With an impressive 5000W rated capacity and a 1.6m rotor diameter, the Archimedes Liam-F1 R-1600 delivers heavy-duty power yields engineered for high-velocity industrial exhausts, cooling tower systems, and commercial shopping malls.

Industrial Cooling Towers

Waste Kinetic Energy Recovery
  • Continuous Exhaust Power: Installed directly over factory chiller discharge fans to convert high-speed exhaust air into clean electricity.
  • Heavy Draft Handling: Heavy 190kg reinforced structure withstands severe continuous forced-air velocity without blade distortion.
  • Industrial Recirculation: Feeds power back into plant pumps and HVAC control circuits to slash monthly factory utility overheads.
Cooling Tower Specialist

Shopping Malls & High-Rises

Facade Updraft & Green Mark
  • Rooftop Facade Updrafts: Positions along mall roof edges to capture powerful thermal updrafts traveling upward along commercial facades.
  • BCA Green Mark Compliance: Helps commercial building management earn key sustainability points for clean micro-generation.
  • Base Load Utility Offset: Offsets large-scale indoor facility lighting, atrium displays, and ventilation power demand.
Shopping Mall Rooftops

Large Air Ducts & Vents

Heavy Ventilation Recovery
  • Large Duct Air Capture: Fits onto commercial exhaust duct discharges to harvest high-volume air streams 24 hours a day.
  • Automated Safety Braking: Built-in electromagnetic auto-brake system instantly engages during high-velocity wind surges.
  • Industrial Battery Integration: Compatible with 48V / 96V DC industrial solar-wind hybrid storage controllers.
Factory Air Duct Compatible
Schedule a Commercial Engineering Evaluation

Ready to Recover Energy from Your Building's Cooling Tower or Aircon Exhaust?

Follow Infineon Technologies Singapore and discover how the 5kW Liam-F1 Model R-1600 Wind Turbine can turn waste exhaust airflow into continuous power at your facility.

Key Advantages
  • Starts spinning easily even in light city breezes.
  • Fits securely on both flat concrete rooftops and metal frames.
  • Built-in automatic safety brakes protect the unit during strong storms.

Request More Information

Contact our Singapore team today for site evaluations and pricing details.

Office & Showroom

7030 Ang Mo Kio Ave 5, #08-16 Northstar @AMK, Singapore 569880

Frequently Asked Questions

The Archimedes Liam-F1 Model R-1600 is a heavy-duty 5000W (5kW) vertical-axis wind turbine engineered for high-demand commercial and industrial environments in Singapore. Its nautilus logarithmic 3-blade spiral design is specifically built to capture continuous forced-air discharge from industrial cooling towers, factory HVAC exhaust vents, and commercial shopping mall rooftops.

  • Rated Power Output: 5000W / 5kW (5050W Peak Limit)
  • Rotor Wheel Diameter: 1.6 meters (Ø 1600 mm)
  • Assembly Length & Gross Weight: 1.8 meters length and 190 kg gross weight
  • DC Working Voltage Options: 12V / 24V / 48V / 96V DC
  • Packaging Dimensions: 1550 * 1610 * 1860 mm

Industrial cooling towers and factory ventilation fans discharge high-velocity forced air 24 hours a day. By mounting the 5kW R-1600 directly in line with these exhaust streams, the turbine converts wasted kinetic air energy straight into clean electricity, providing non-stop micro-generation independent of natural outdoor weather.

Installing the 5kW R-1600 model on commercial shopping mall rooftops or building edges captures strong thermal updrafts rising along high-rise facades. Generated electricity is fed directly back into facility base loads (such as common-area LED lighting and atrium displays), helping building owners secure valuable BCA Green Mark sustainability credits.

Despite its industrial 1.6m size, the R-1600 features an ultra-low starting wind speed of under 1.0 m/s and a cut-in speed under 3.0 m/s. It reaches its full 5000W rated capacity at a rated wind velocity of 13 m/s, safely handling continuous high-speed industrial air drafts up to 36 m/s.

The R-1600 offers flexible multi-voltage configurations (12V / 24V / 48V / 96V DC). This wide range allows seamless integration into industrial solar-wind hybrid charge controllers, central building management systems, and high-capacity battery storage banks.

The R-1600 is equipped with dual automated electromagnetic braking and internal load-relief protection. If draft speeds or wind gusts breach maximum thresholds, the auto-brake system instantly engages to prevent mechanical stress, safely handling instantaneous storm gusts up to 45 m/s.

Built with IP54 generator protection and rated for operating temperatures between -25°C and +45°C, the R-1600 is engineered for extreme weather resistance in tropical Singapore. Its direct-drive gearless permanent magnet design has no complex gears, ensuring ultra-low maintenance demands.

Speak directly with the Reliance Green Energy Pte Ltd engineering team by calling +65 9388 2202, emailing karlkoh1818@gmail.com, or visiting our Singapore headquarters at 7030 Ang Mo Kio Ave 5, #08-16 Northstar @AMK, Singapore 569880.
