Archimedes Liam-F1 Model R-1200 (2000W / 2kW)

Reliance Green Energy Pte Ltd supplies the high-performance Archimedes Liam-F1 Model R-1200, a 2000W (2kW) vertical axis wind turbine designed for landed residential properties, private estates, multi-family rooftops, and small private facilities in Singapore.

Engineered with a 1.2m rotor wheel diameter and a compact 1.4m assembly length, the 2kW R-1200 provides substantial micro-generation power to offset household utility consumption, power residential energy storage systems, and charge home battery banks.

With an ultra-low starting wind velocity under 1.0 m/s and smooth, near-silent operation, it efficiently captures natural coastal breezes, garden air currents, and open rooftop winds across Singapore's residential environments.

Key Model Highlights:

Rated Power Output: 2000W / 2kW (2050W Peak Limit)

1.2m Rotor Diameter & 1.4m Body Length Ideal for Residential Roofs

Configurable 24V / 48V DC Battery Storage & Solar Hybrid Setup

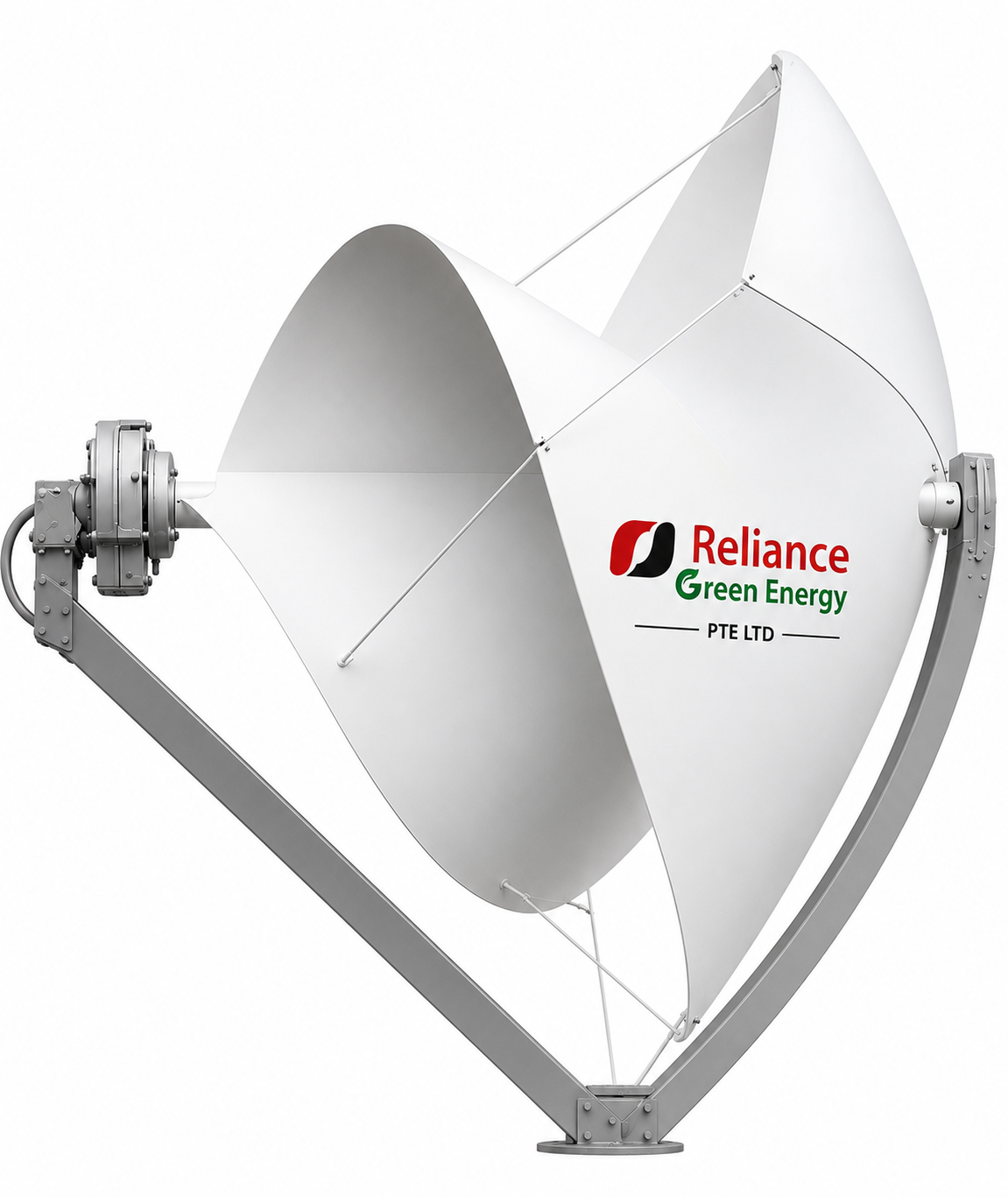

Archimedes Liam-F1 Model R-1200 Wind Turbine 2000W

Technical Parameter	Model: R-1200 Specification
Product Name	Vertical wind turbine
Starting Wind Speed (m/s)	<1.0 m/s
Cut-in Wind Speed (m/s)	<3.0 m/s
Rated Wind Speed (m/s)	13 m/s
Safe Wind Speed (m/s)	Maximum wind speed: ≤36m/s Maximum instantaneous wind speed ≤45m/s
Rated Voltage (DC)	24/48V
Rated Power (W)	2000W
Maximum Power (W)	2050W
Wheel Diameter (m)	1.2m
Wind Turbine Length (m)	1.4m
Package Size (mm)	1220 * 1260 * 1460mm
Gross Weight	137kg
Blades	3
Generator Protection Class	IP54
Operating Temperature	Wind turbine is -25~+45°C
Use of Environmental Humidity	Wind turbine is ≤90% Controller and inverter is ≤80%
Altitude	≤4500m

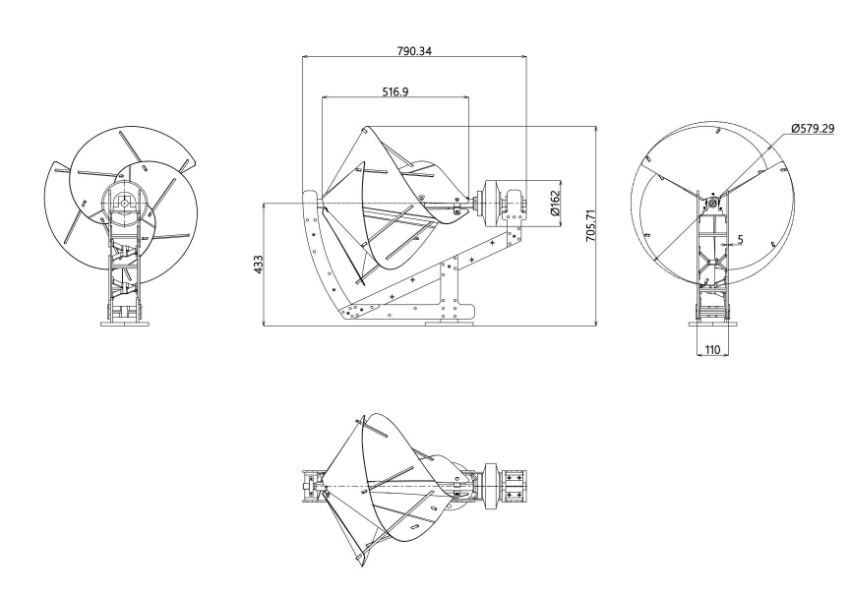

Archimedes Liam-F1 Dimensional CAD Drawing and Blueprint

Dimensional CAD Schematics

Precise multi-angle orthographic projections highlighting overall length (790.34 mm), rotor wheel diameter (Ø579.29 mm), and base mounting footprint width (110 mm).

CAD Orthographic Views

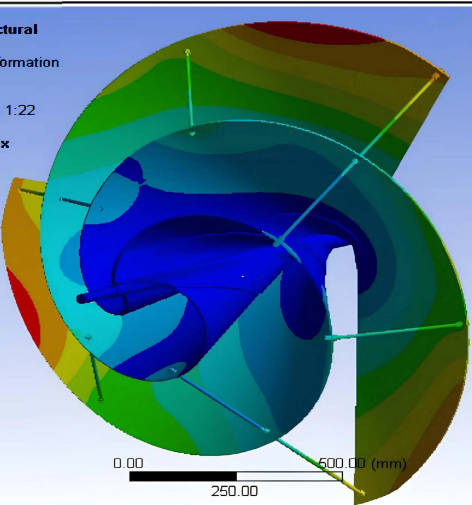

FEA Structural Deformation and CFD Wind Stress Analysis

FEA Stress & Flow Analysis

Finite Element Analysis (FEA) model mapping structural pressure distribution, blade deflection thresholds, and dynamic load relief performance across high-velocity wind drafts.

ANSYS Simulation

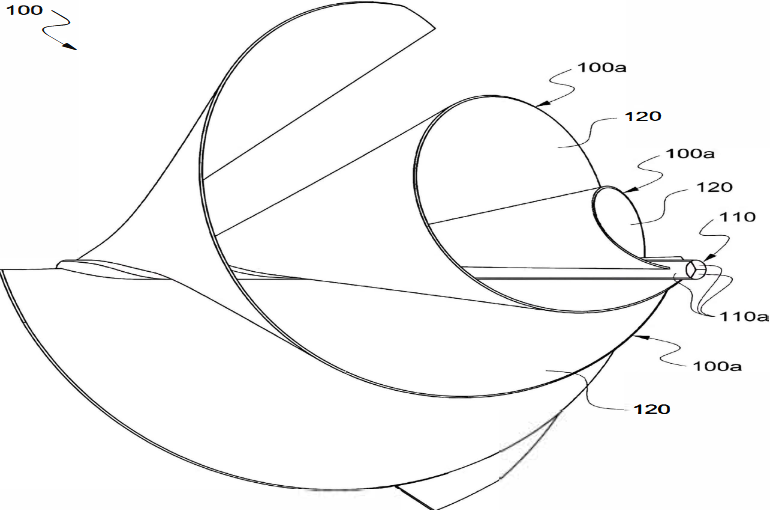

3D Spiral Blade Geometry

Exploded mathematical geometry showcasing the 3-blade nautilus logarithmic spiral design, central drive shaft alignment, and expanded air-capture surface area.

Patent Geometry

Overall Length:

1400.00 mm

Rotor Diameter:

Ø 1200.00 mm

Assembly Weight:

137 kg

Rated Output:

2000W (2kW)

Landed Homes & Estates

Residential Micro-Power

Substantial Power Yield: Generates 2000W of clean energy to offset daily household air conditioning and home appliance usage.
Solar-Wind Hybrid Setup: Pairs directly with 24V or 48V home battery storage and rooftop solar arrays for round-the-clock power.
Low Vibration Mount: Smooth nautilus blade design mounts cleanly on landed home roofs without structural noise or shaking.

Landed Homes Ideal

Condos & Residential Roofs

Rooftop Draft Harvesting

Open Rooftop Wind Capture: Easily captures steady coastal winds and thermal air currents rising along residential high-rises.
Common Area Power: Supplies clean electricity directly to corridor lighting, security systems, and common utilities.
Ultra-Quiet Operation: Low acoustic output (< 45dB) ensures full compliance with high-density residential quiet hours.

Residential High-Rise

Shophouses & Light Commercial

Facility Base Load Offset

Day & Night Generation: Continues producing micro-power during overcast weather and night hours when solar output stops.
Exhaust Vent Recovery: Positioned near small commercial exhaust outlets to convert forced air discharge into usable energy.
Compact Installation: 1.4m overall length installs cleanly on flat commercial roofs and parapet walls.

Light Commercial

Singapore Urban Energy Innovation

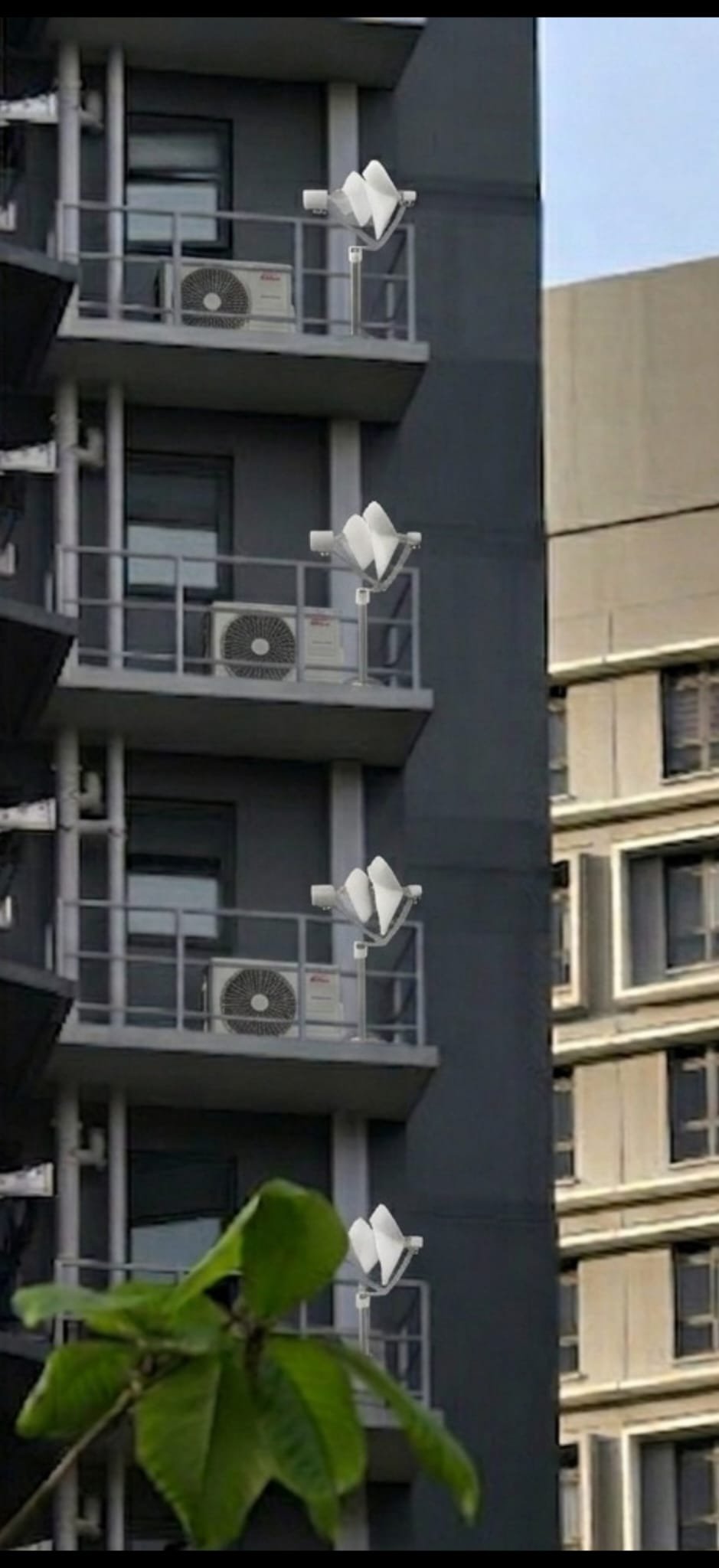

Why Singapore High-Rise Residents are Switching to the Liam-F1 Model R-1200 Wind Turbine for Balcony Power

Singapore high-rise buildings act as natural wind funnels. As you live higher, wind speeds increase dramatically—creating a continuous, untapped source of free energy right outside your balcony window for the Liam-F1 Model R-1200 Wind Turbine.

⚡ Liam-F1 Model R-1200 Wind Turbine

Recycle Aircon Exhaust

Converts condenser airflow into electricity

Aircon Condenser Exhaust Energy Recovery

Positioned near outdoor air conditioner compressor units on high-rise ledges and balconies, the Liam-F1 Model R-1200 Wind Turbine captures the strong, constant discharge airflow whenever your aircon runs—recycling waste exhaust wind directly into clean power to offset home energy bills.

Stronger High-Rise Winds

High-rise residential blocks naturally experience stronger wind speeds at higher floors, maximizing daily energy yield for the Liam-F1 Model R-1200 Wind Turbine.

Whisper-Quiet (< 45 dB)

Operating below typical urban noise levels, the nautilus spiral rotor of the Liam-F1 Model R-1200 Wind Turbine glides quietly without rotational vibration or neighbor disturbance.

24/7 Day & Night Power

Unlike rooftop solar panels that stop generating after sunset, the Liam-F1 Model R-1200 Wind Turbine continues producing electricity during night aircon usage and coastal breezes.

Space-Saving Footprint

The Liam-F1 Model R-1200 Wind Turbine is engineered specifically to mount securely near outdoor compressor units or balcony railings without taking up indoor living space.

Solar Hybrid Integration

Connects the Liam-F1 Model R-1200 Wind Turbine seamlessly into existing 24V / 48V home battery systems to ensure round-the-clock uninterrupted power backup during grid outages.

Monsoon Weather-Proof

Built with IP54-rated weatherproof casing, the Liam-F1 Model R-1200 Wind Turbine comfortably withstands tropical thunderstorms and gusts up to 45 m/s.

Ready to Install the Liam-F1 Model R-1200 Wind Turbine?

Check your aircon ledge / balcony unit compatibility today.

Request Balcony Assessment

Get Expert Advice

Talk to Our Team About the Archimedes Liam F1 Wind Turbine Series

Our team will help you inspect your space and design the best solar and wind energy system for your home or business.

Key Advantages

Starts spinning easily even in light city breezes.
Fits securely on both flat concrete rooftops and metal frames.
Built-in automatic safety brakes protect the unit during strong storms.

Request More Information

Contact our Singapore team today for site evaluations and pricing details.

Phone

+65 9388 2202

Email

karlkoh1818@gmail.com

Office & Showroom

7030 Ang Mo Kio Ave 5, #08-16 Northstar @AMK, Singapore 569880

The Archimedes Liam-F1 Model R-1200 is a 2000W (2kW) vertical-axis urban wind turbine designed for mid-scale applications like landed homes, multi-family residential roofs, condo facilities, and light commercial shophouses in Singapore. Its nautilus logarithmic spiral design captures multi-directional breezes silently and efficiently.

Rated Power: 2000W / 2kW (2050W Maximum Peak)
Rotor Wheel Diameter: 1.2 meters
Assembly Length & Gross Weight: 1.4 meters length and 137 kg gross weight
DC Working Voltage: 24V / 48V DC
Packaging Dimensions: 1220 * 1260 * 1460 mm

The Model R-1200 is specifically sized for landed estate rooftops, private residential properties, multi-family condominiums, shophouses, and light commercial buildings. It provides the ideal balance between output capacity and manageable physical dimensions (1.2m diameter).

The R-1200 features an ultra-low starting wind speed of less than 1.0 m/s and a cut-in velocity under 3.0 m/s. It reaches its full rated 2000W power output at a wind speed of 13 m/s, making it highly effective at catching ambient urban breezes and rooftop thermal drafts in Singapore.

No. Thanks to its nautilus spiral blade architecture, the R-1200 minimizes air turbulence and rotational vibration, keeping operational sound levels below 45 dB. This allows for quiet, disturbance-free performance in high-density residential areas.

The R-1200 is configured for 24V or 48V DC outputs and connects directly with hybrid solar charge controllers and energy storage battery banks. While rooftop solar panels cover daytime energy demands, the wind turbine continues charging batteries during overcast weather and night hours.

The R-1200 includes automated electromagnetic braking protection to regulate overspeed events during high wind gusts. It is rated for safe continuous operation in wind speeds up to 36 m/s and withstands peak storm gusts up to 45 m/s.

Featuring an IP54-rated weatherproof generator casing and operating in temperatures from -25°C to +45°C, the R-1200 is built for long-term outdoor use in tropical climates. Its gearless design requires minimal upkeep, focusing primarily on occasional visual checks of structural fixings and wiring.

Get in touch with the Reliance Green Energy Pte Ltd technical sales team at +65 9388 2202, send an email to karlkoh1818@gmail.com, or visit our office and showroom at 7030 Ang Mo Kio Ave 5, #08-16 Northstar @AMK, Singapore 569880.
