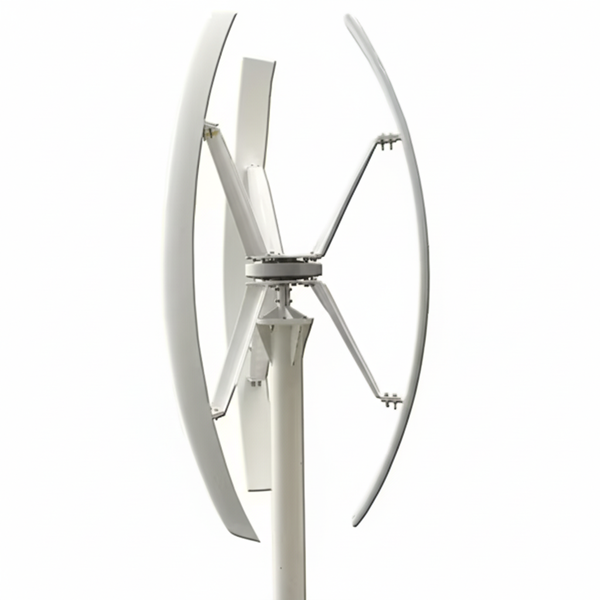

GV-1KW Vertical Axis Wind Turbine

The GV-1KW is a cutting-edge vertical axis wind turbine designed for efficient and reliable power generation. It utilizes a unique “Precise Coll” technology, eliminating the need for traditional hysteresis and gear mechanisms, resulting in higher efficiency and lower maintenance. The turbine incorporates a robust structure and a specially designed motor for optimal performance, delivering a high power-to-weight ratio. With a long lifespan and minimal maintenance requirements, the GV-1KW is a dependable and cost-effective solution for harnessing wind energy.

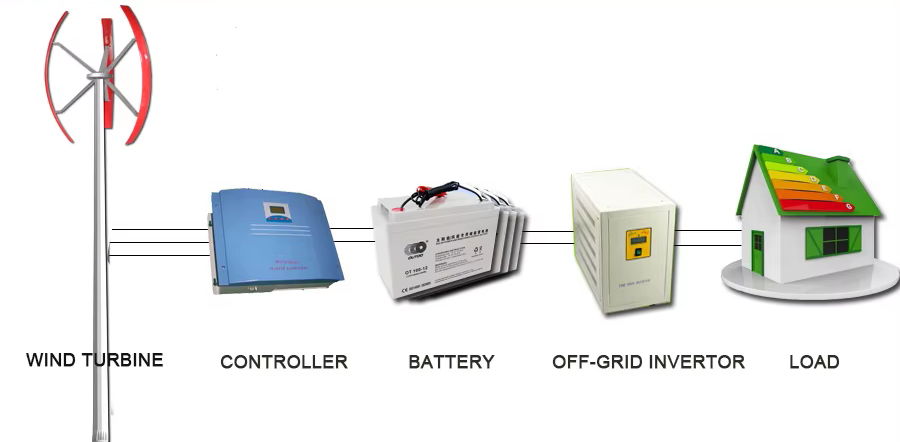

1KW VAWT Off Grid section Diagram

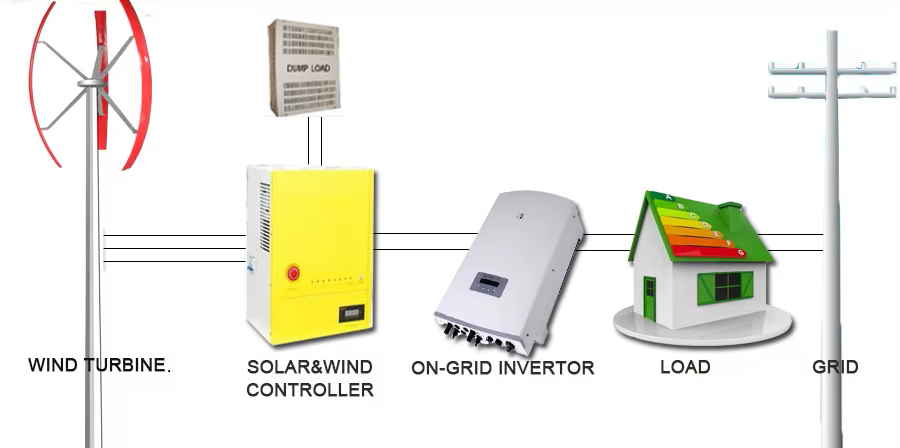

Working Principle of GV-1KW Vertical Axis Wind Turbine

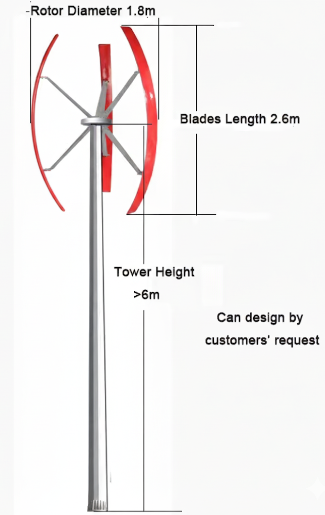

Technical Specification

Sound Data

Test position: At 15m away from generator (average value of 3 point-rears, left, right)

Wind Speed (m/s) Sound (dB)
3 1.31
4 3.02
5 6.20
6 9.43
7 13.42
8 22.08
9 32.54
10 36.45
11 37.22
12 45.11
13 45.20
14 45.25
15 45.33
16 45.44
17 45.52
18 45.62
19 45.85
20 46.00

Note: The sound value includes wind noise.

Why choose GV-1KW Vertical Axis Wind Turbine ?

Especial Generator —- coreless disc generator

Advantage:
1. Torque Patent Technology: use newest “Precise Coil” technology.
2. No hysteresis and gear notches effect make the start torque very low <1N.M ,it can make the wind
turbine have low start wind speed.
3. Original Structure: use disc coreless motor to take place traditional motor makes it less drag
4. Higher Reliability: special structure makes it bigger ratio of power to volume, power to weight and have
long life of 8 times longer than traditional motor.

Why choose GV-1KW Vertical Axis Wind Turbine ?

Simple structure, 1 hour installation



ROSE 6.0 ACCESSORIES LIST

Why choose ROSE 6.0-600W wind turbine?

Power Curve Tracking Function

  • For off-grid system –Marching MPPT Charge controller
  • For on-grid system –Marching MPPT Wind Invertor
  • Wind turbine MPPT track point adjustable by yourself
  • Off-grid system wind turbine low cut in wind speed charge

  • Complete protection function

  • Several functions are optional, such as PV control function, wind speed measure function, rotational

  • RS232/RS485/RJ45/GPRS/WIFI/Bluetooth/Zigbee optional. ( It can be monitored by app for those with

    GPRS/WIFI/Bluetooth/RJ45 connection)



Our Installed Projects

FAQ

A VAWT is a type of wind turbine where the main rotor shaft is oriented vertically, meaning the blades rotate around a vertical axis. This differs from traditional horizontal-axis wind turbines (HAWTs) where the rotor shaft is parallel to the ground

HAWTs have horizontal blades and require wind to blow from a specific direction.

Simple design, low maintenance, operate in various wind directions, and aesthetically pleasing

Lower efficiency compared to HAWTs and potential for torque fluctuations.

Residential areas, remote locations, urban environments, and marine applications.

No, their effectiveness depends on wind speed and direction patterns.

Ongoing research focuses on improving efficiency and expanding applications.

Simple design, low maintenance, operate in various wind directions, and aesthetically pleasing.
